Description

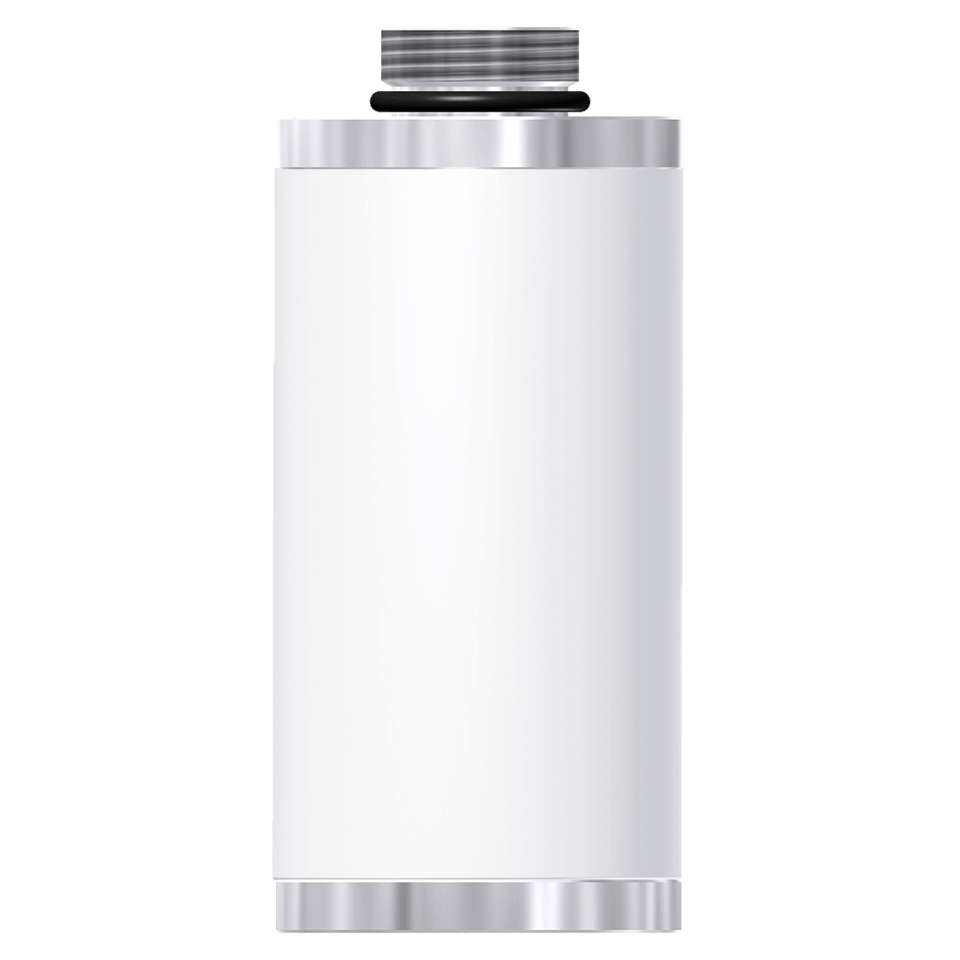

Omega Air alternative replacement filter element OOR 500 LSF/XR Al is designed for high-efficiency removal of solid particles, oil aerosols, water, hydrocarbons, vapours and odours from compressed air in demanding industrial applications.
Applications
- Automotive
- Electronics
- Food & Beverages
- Chemical
- Petrochemical
- Plastics
- Paint
- General industrial applications
Technical specifications
- Omega Air model: OOR 500 LSF/XR Al
- Omega Air article number: 1010100107188
- OEM reference: LSF 500 Orion
- Filtration grade: XR
- Diameter: 86.0 mm
- Height: 159.0 mm
- Solid class (ISO 8573-1): 3
- Water class (ISO 8573-1): /
- Oil class (ISO 8573-1): /
- Particle retention: 1
- Particle retention rate: 99.8 %
- Residual oil content: /
- Initial differential pressure (dry): 20.0
- Differential pressure (wet): 40.0
- Operating temperature: 1.5 – 65 °C
- Flow direction: Inside to outside
For reliable operation and air quality, replace the filter element at least once per year or when pressure drop reaches 350 mbar, whichever occurs first.
