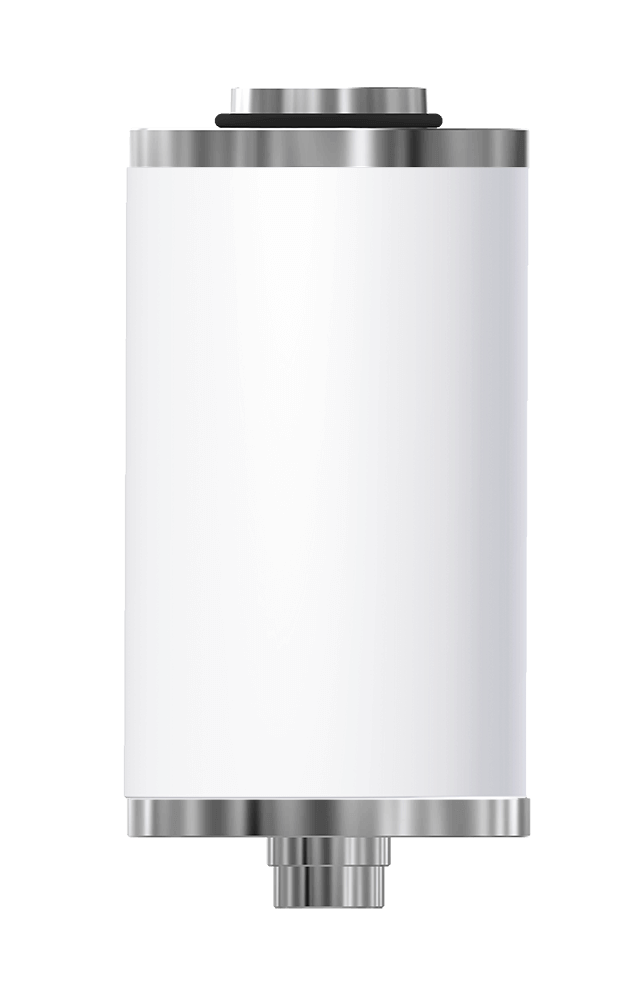

OOR F75 OMF/XS Al

Description

Omega Air alternative replacement filter element OOR F75 OMF/XS Al is designed for high-efficiency removal of solid particles, oil aerosols, water, hydrocarbons, vapours and odours from compressed air in demanding industrial applications.

Applications

• Automotive
• Electronics
• Food & Beverages
• Chemical
• Petrochemical
• Plastics
• Paint
• General industrial applications

Technical specifications

• Omega Air model: OOR F75 OMF/XS Al
• Omega Air article number: 1010100107202
• OEM reference: OMF-75-B Orion
• Filtration grade: XS
• Diameter: 49.0 mm
• Height: 74.0 mm
• Solid class (ISO 8573-1): 1
• Water class (ISO 8573-1): /
• Oil class (ISO 8573-1): 1
• Particle retention: 0.01
• Particle retention rate: 99.998 %
• Residual oil content: 0.01
• Initial differential pressure (dry): 80.0
• Differential pressure (wet): 190.0
• Operating temperature: 1.5 – 65 °C
• Flow direction: Inside to outside

For reliable operation and air quality, replace the filter element at least once per year or when pressure drop reaches 350 mbar, whichever occurs first.
